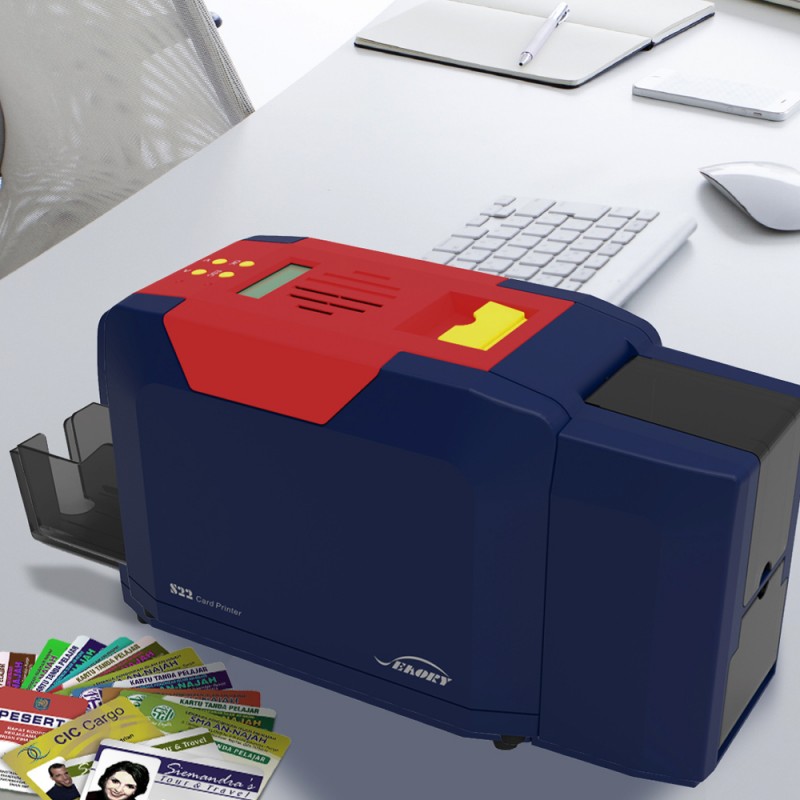

SEAORY S22 Features 20s high-effective printing in color single-sided, 42s per card (dual side) Support contactless contact dual interface chip card encoding module

Specification:

• Type: Dual Sided Printer

• Print Method:  Dye sublimation (Direct-to-card)

• Print Resolution: 300 dpi × 300 dpi

• Display: LCM Display

• Memory: 128MB

• Print Speed: Monochrome printing: 3~5s per card(single side) / 7~12s per

                          card(dual side)

                          Full-color(YMCKO) printing: 20s per card(single side) / 42s per

                          card(dual side)

• Print Dimension: ISO-CR80 (85.6mmx53.98mm)

• Card Thickness: 0.3-1.05mm

• Input Capacity: 100 cards（0.76mm）

• Output Capacity: 50 cards（0.76mm）

• Reject tray capacity: 30 cards（0.76mm）

• Operation System:  Driver: support Windows® XP/7/8/10 (32 or 64 bit), Linux, Unix

                                       Card design software: ICARDE®, support Windows® XP/7/8/10

                                        (32 or 64 bit)

• Interfaces: USB & Ethernet

• Power: 110-240V, 50/60Hz

• Operating Condition:  1. Regular running temp.: 15℃-30℃(59-86℉), 20%~65% RH

                                                non-condensing

                                            2. Lowest / Highest running temp.: 0℃(32℉) / 40℃(104℉),

                                                20%~65% RH non-condensing

• Consumables:  Monochrome black ribbon: 200m×60mm, around 2000 prints/roll

                               Monochrome golden/silver/white/red/blue ribbon: 100m×60mm,

                               around 1000 prints/roll

                               Full panel YMCKO: 300 prints/rollHalf panel: 1/2ymcKO,

                               450prints/roll, half panel: 1/2ymcKOKO, 250prints/rollKO ribbon:

                               500 prints/roll

• Magnetic stripe card encoding module:  ISO7811 Hi-co/Low-co, 3-Track read & write

• Dual interface card encoding module:  CPU card (ISO 7816, T=1 & T=0), 4 SAM slots

                                                                         (same as SIM card size complied with GSM

                                                                         11.11)

                                                                         Support contactless CPU card (ISO14443 TYPE

                                                                         A/B), PC/SC

• Contactless ID card encoding module: 125KHz (Specified chip type)
