Fitness Sorter

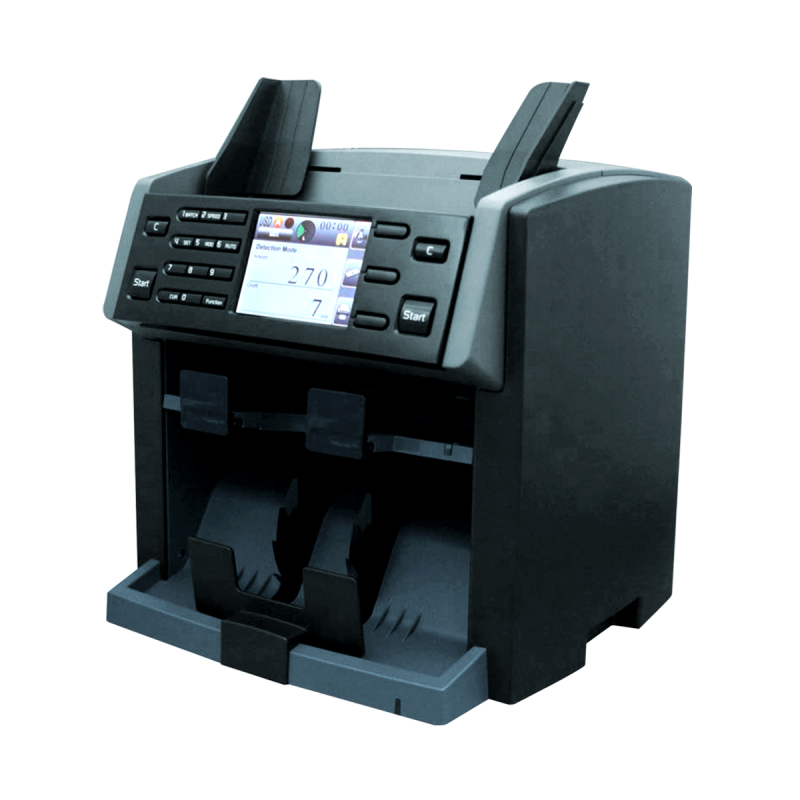

NC-6500 is the world smallest fitness sorter, perfectly fits for tellers need to do fitness handling, Equipped with latest image processing technology, with avant-garde design, color LCD and user-friendly interface, NC-6500 not only stops all the counterfeit, but also detects holes, tears, folded or missing comers, tape, stain and soild of banknotes, the all-in-one design makes all the tedious operation in a snap. With the smallest footprint, lowest sound level in the industry, NC-6500 is the device to assist tellers fulfill fitness framework.

SPECIAL FEATURES

Large TFT display with MA unitized interface design, easy to use

Dual users control panel with physical numeric keypad and combined functional keys.

Compact two pocket machine with various sorting function: DD, Face, Orientation and Emission.

Extra reject pocket for non-interruption note processing.

Full range of I/O port

Easy opening bill path for fast paper jam removal and daily maintenance.

TECHNICAL SPECIFICATIONS

Feed System                            Roller Friction System
Counterfeit Detection            Dual CIS, IR reflection and Transmission, MR, MG, Tape Sensor, UV
Counting Speed                      Piece Count 1000 notes/min
                                                  Denomination Count 800 notes/min
                                                  Serial Number Count 800 notes/min
                                                  Fitness Count 800 notes/min
Hopper Capacity                    Max. 500 notes
Stacker Capacity                    Max. 200 notes
Reject Capacity                      Max. 50 notes
Countable Note Size             60 x 85 x 0.08mm - 100 x 190 x 0.12mm
Display                                    3.5 Inch TFT LCD
Power Supply                        100 - 240V , 50/60Hz
Power Consumption            Max 50W
Dimensions                            280(W) x 272(D) x 282(H) mm
Weight                                    8.2 Kg
Interface                                 LAN x 1
                                                 RS-232 x 1
                                                 USB x 1
                                                 SD Card x 1
Options                                  Remote Display
                                                Thermal Printer
