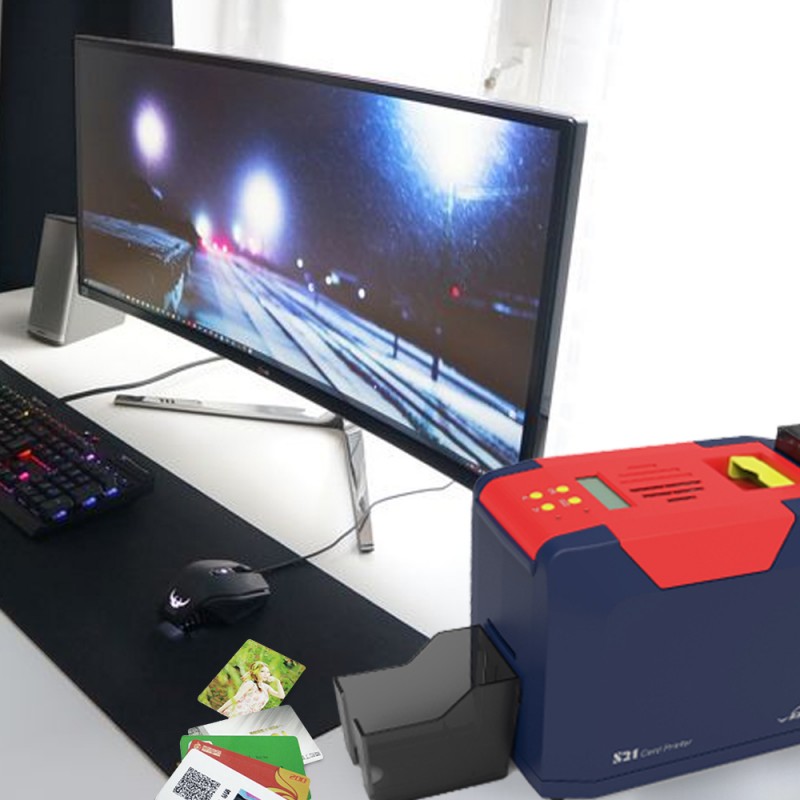

SEAORY S21 Features 20s high-effective printing in color single-sided Support contactless contact dual interface chip card encoding module.

Specifications:

• Type: Single Sided-Card Printer

• Print Method:                Dye sublimation (Direct-to-card)

• Print Resolution:  300 dpi × 300 dpi

• Display: LCM Display

• Memory: 128MB

• Print Speed:   Monochrome: 3~5s per card

                             Full-color(YMCKO) printing: 20s per card

• Print Dimension: ISO-CR80 (85.6mmx53.98mm)

• Card Thickness: 0.3-1.05mm

• Input Capacity:  100 cards（0.76mm）

• Output Capacity:  50 cards（0.76mm）

• Reject tray capacity: 30 cards（0.76mm）

• Operation System: Driver: support Windows® XP/7/8/10 (32 or 64 bit), Linux, Unix

                                      Card design software: ICARDE®, support Windows® XP/7/8/10

                                       (32 or 64 bit)

• Interfaces:      USB & Ethernet

• Operating Condition:

                                          1.Regular running temp: 15℃-30℃(59-86℉), 20%~65% RH

                                              non-condensing

                                          2. Lowest / Highest running temp: 0℃(32℉) / 40℃(104℉),

                                              20%~65% RH non-condensing

• Consumables:  Monochrome black ribbon: 200m×60mm, around 2000 prints/roll

                               Monochrome golden/silver/white/red/blue ribbon: 100m×60mm,

                               around 1000 prints/roll

                               Full panel YMCKO: 300 prints/roll Half panel: 1/2ymcKO,

                               450prints/roll, half panel: 1/2ymcKOKO, 250prints/roll

                               KO ribbon: 500 prints/roll

• Magnetic stripe card encoding module: ISO7811 Hi-co/Low-co, 3-Track read &

                                                                           Write

•Dual interface card encoding module: CPU card (ISO 7816, T=1 & T=0), 4 SAM slots

                                                                       (same as SIM card size complied with GSM

                                                                       11.11)

                                                                       Support contactless CPU card (ISO14443

                                                                       TYPE A/B), PC/SC

• Contactless ID card encoding module:                125KHz (Specified chip type)

• UHF chip card encoding module:  Read & write card complied with ISO

                                                                18000-6C
