Dedicated printing solution for front office application

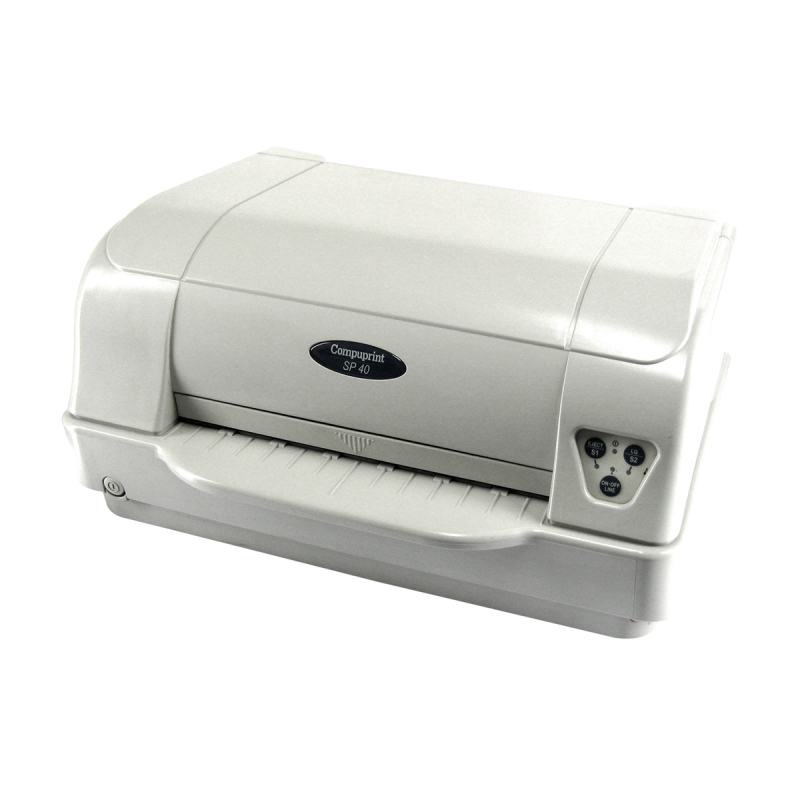

The Compuprint SP-40 is designed to be the ultimate printing solution for transactional application and financial services. By assuring process efficiency and offering a competitive low cost of ownership,the Compuprint SP-40 is the ideal, long-term asset for business and financial institution.

Features• A leading-edge serie for today and tomorrow

• Fast, Flexible, Realible

• For a broad range of intensive printing requirements

• Reliable, Fast and Powerful

• Compact and elegant design

• Secure document handling and ast transaction time

• Fully compatible with today’s standard and financial application

• Powerful system to support future application and system migration

Technical Specifications

Printing Technology: 24 pin DOT Matrix Impact Printer

Resolution: 360 x 360 dpi (HxV)

Line Length: 94 column (cut sheet) @ 10cpi

Printing Speed: 400 cps @ 10 cpi (draft) / 133 cps @ 10 cpi (LQ)

Pitch: 10, 12 and cpi

Max. Thickness: 2.2 mm

Emulation: 4.1 inches Graphic LCD

Counterfeit Detection: BM Personal Printer 2390+, Proprinter XL24AGM, IBM 4722, 9068, Epson 570 and Olivetti PR40+, PR2, 2845, Epson LQ, Oki 5330/5630

Resident Fonts: Draft, Courier, Gothic, Prestige, Presentor, Script, OCR-A, OCR-B, Boldface

Barcodes: UPC/A, UPC/E, EAN8, EAN13, Code 39, Code 128 Postnet, Codabar, DD-ON 2, ADD-ON 5, Code 11, Code 93, BCDm MSI, 2/5 Interleaved, 2/5 Matrix, 2/5 Industrial

Interfaces: Parallel, IEEE 1284 bidirectional, Serial RS-232/C, USB 2.0, Automatic Interface Switching

Memory: 64 Kbytes buffer

Special Function: Automatic Gap Adjustment (AGA), Auto Alignment, Auto Border Recognition

Ribbon Life: 15 million character (black)

Reliability: MTBF: 10,000 hours

Print Head Life: 400 million characters per pin

Physical Dimensions & Weight: 400(W) x 200(H) x 295(D)mm

Power Supply: Tension: 88~264V; Frequency: 47~63HZ;

Consumption: 120W max (Printing). 10W (Standby)

Environmental Conditions Temp.: working 5/40°C, stock-25/60° C,

Humidity: working from 20-85% (r.h); stock from 10-90% (r.h)

Standard: EN 60950, IEC 950

Environment: Energy star compliant

Noise Level: 54 dbA
