A rigid PVC cased Intumescent fire and smoke seal for fire resisting doors and door frames. RP1004S is set into a morticed groove. An aggressive self-adhesive backing tape is standard. Fire resistance level of 30 minutes FRL30, fire-smoke doors FDS3. (FRL60 or FDS60 when two strips are used.

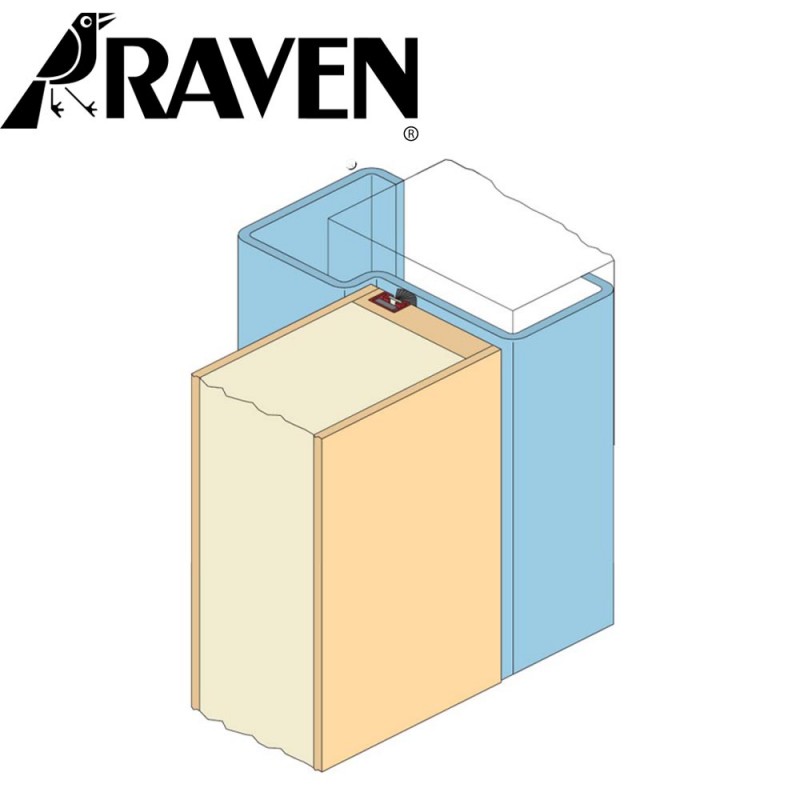

Location: Moriced into the door or frame stiles and head.

Min/Max Gap: 3mm to 4mm.

Seal Size: 2100mm.

Fixing Method: Self Adhesive.

Note: Contact surface must be clean, smooth and if painted, well cured.

Seal Material: Intumescent infill, polypropylene pile smoke seal and fin barrier with Rigid PVC holder.

Used in conjunction: Raven Si rated door bottom smoke seals, or Raven nylon brush strip seals for pivot doors.
