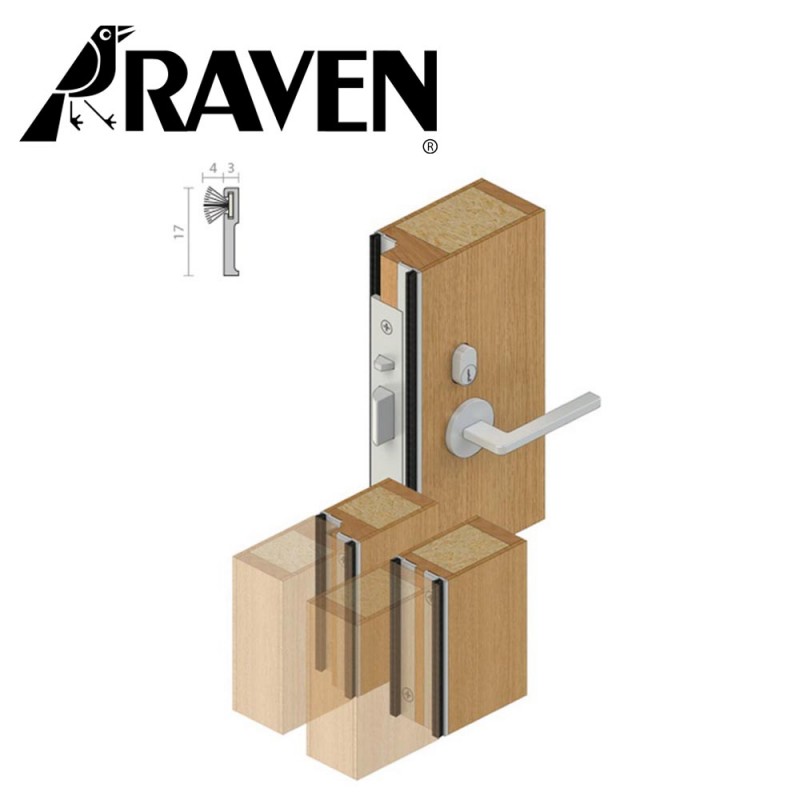

Astragal seal designed for plain or rebated meeting stiles of timber double doors where a centre latch bolt may be required, or where both doors are active. The sealing portion is made from a black woven pile, incorporating felt weather fins, which are effective in the sealing of noise and weather.Two seals are installed onto one door stile, allowing space for a latch between the seals. The legs of the seals can be cut out (checked) to accommodate the latch bolt front plate, thereby providing a continuous seal (minimum door thickness subject to centre latch and dimensions of morticed door bottom seals).

Location: Double broad butt hinged and centre pivot double acting doors.

Min/Max Gap 3mm to 4mm.

Seal Sizes: Available in stock lengths.

Standard Finish: Aluminum anodized 15 microns. Satin Clear (Silver) or Bronze Finish.

Fixing Method: Zinc plated, cross recess head S.T. screws of the appropriate size and color are supplied. Fixing holes are pre-drilled.

Seal Material: Polypropylene pile with felt weather fins (black).
