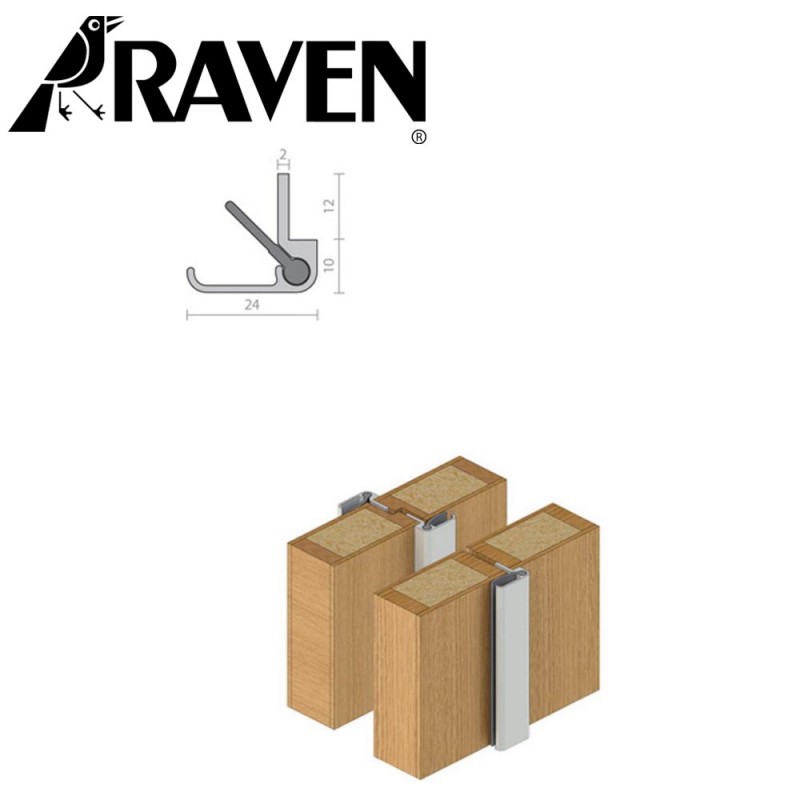

RP16 is an acoustic, smoke astragal. Its proven design is effective in sealing the meeting stiles of plain or rebated double doors. Its aluminum trim neatly conceals the sealing portion of the seal and provides a secure weatherproof rebate stop. If necessary, its aluminum fixing leg can be cut out (checked) to allow for locks and latches. RP16 Si can be rebated or face fixed. For maximum acoustic performance, specify two seals. ie: One for each door leaf. (Minimum door thickness subject to center latch and dimensions of mortised door bottom seals). RP16 Si is used where one door leaf is active. For smoke door magnetic hold open applications such as hospital corridors, sequence select door closers are required.

Location: Meeting stiles of double doors, butt hinged.

Min/Max Gap: 2.5mm/8mm.

Seal Sizes: Available in stock lengths.

Standard Finish: Aluminium anodized 15 microns. Satin Clear (Silver) or Bronze finish.

FIxing Method: Zinc plated, countersunk, cross recess head S.T. screws of the appropriate size and color are supplied. Seal can be rebated or face mounted.

Seal Material: Silicon Rubber (SE) (charcoal.)
