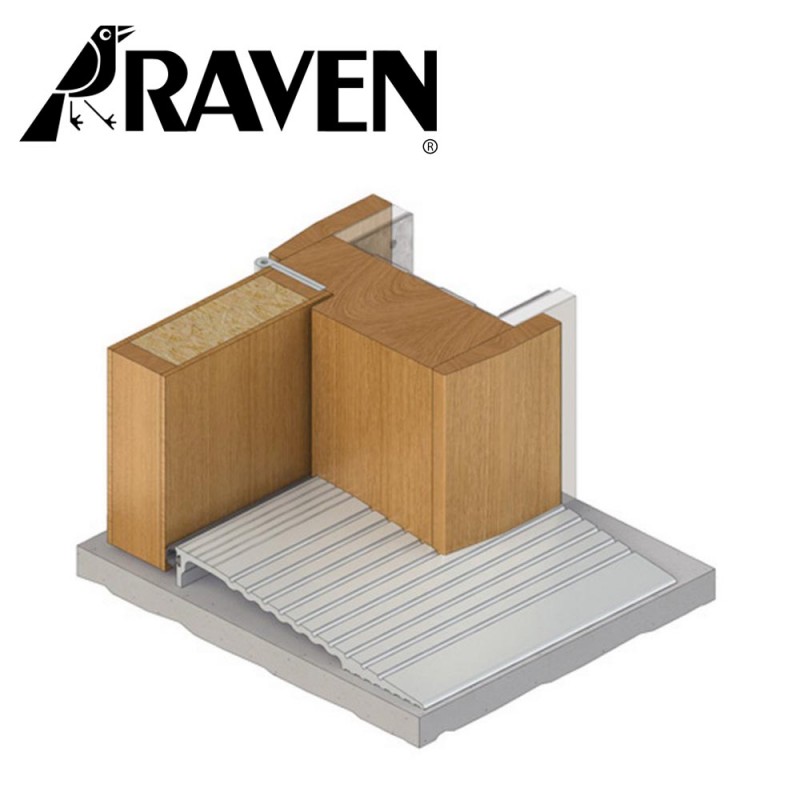

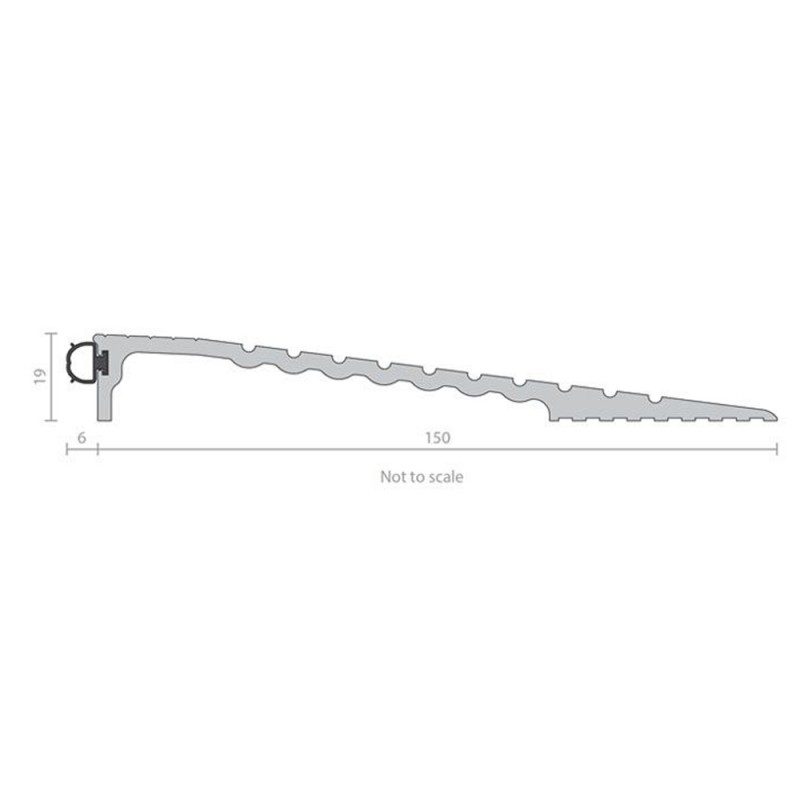

A threshold plate seal particularly suited for outward opening broad butt hinged plant room and emergency exit doors. When used in conjunction with RP93 Si and RP16 Si an excellent smoke and acoustic system is achieved. For acoustic applications, the void under the RP97 Si should be filled with sound foam or other suitable material (by others).

Note: RP67 drip cap should be considered above doorway if the opening has no eave weather protection.

Specify: Order length wide that door opening to provide a neat detail at the door frame.

Min/Max Gap: Compression of seal 0mm/2mm.

Location: Door sills abutting outward opening broad butt hinged plant room or emergency exit doors.

Seal Sizes: Available in stock lengths.

Standard Finish: Aluminium anodized 25 microns. Stain Clear (Silver) or Bronze finish.

Fixing Method: Zinc plate, cross recess head CSK S.T. screws if the appropriate size and color are supplied or can be fastened with builders adhesive for concealed fixing.

Seal Material: Silicon Rubber (SE) (Black).

Replacement Seal RP393 Si.
