Woven Pile Seal (for Noise Protection).

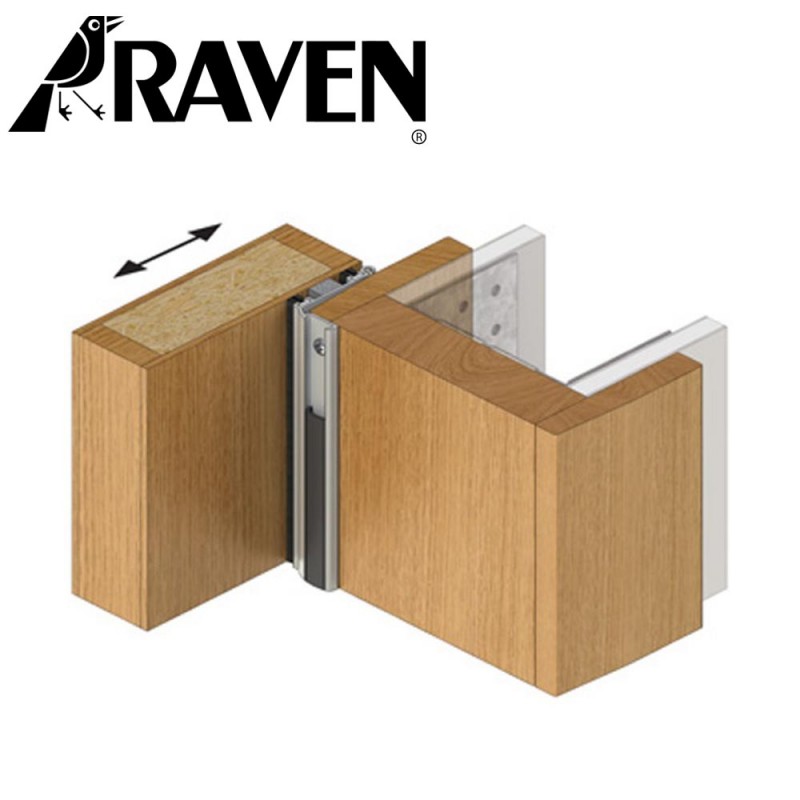

The RP12 sliding door seal is designed to limit noise leakage an to control dust and air movement. It is quick and easy to install to the door or frame.

Location: Door Frames (Head and Jamps).

Min/Max Gap: 6mm/8mm (Prior to installation).

Seal Sizes: Available in stock lengths.

Standard Finish: Aluminium anodized 15 microns. Satin Clear (Silver) or Bronze finish.

Fixing Method: Zinc Plated, cross recess head S.T. screws of the appropriate size are supplied. Fixing holes are pre drilled and are slotted to allow the seals to be fitted accurately and to allow adjustment to be made for building movement. Concealed fixing.

Seal Material: Polypropylene Pile with felt weather fins (black).

Used in conjunction: A double row of RP2 seals fitted into grooves in the door bottom edge or face mount RP74.
